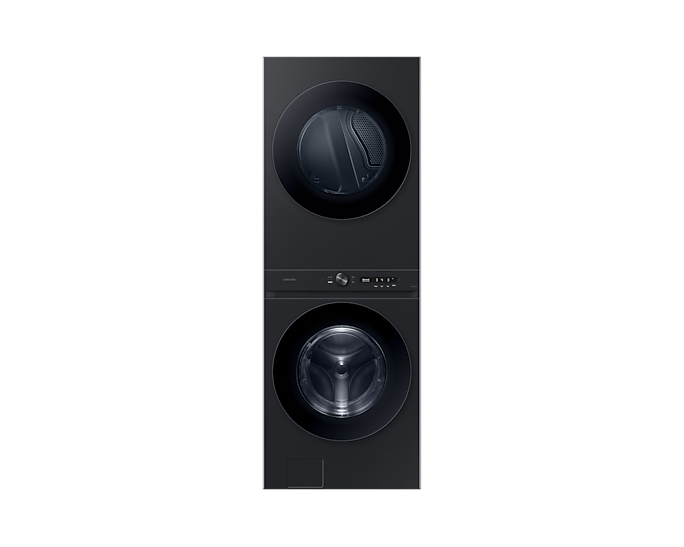

27" Samsung 5.3 cu.ft 100 Series Laundry Hub with 5.3 cu.ft Washer and 7.6 cu.ft Dryer - WH46DBH100EVAC


Availability Call for availability

Literature
  • Fit your space and ditch the step stool with Laundry Hub™. You can control both the washer and the dryer from a centralized control panel.
  • Wash more items in a single load with 5.3 Cu.Ft. of capacity
  • A shallow depth allows for easy closet installation.


Optimize space* and ditch the step stool with Laundry Hub™.

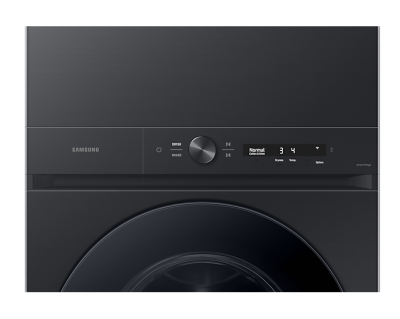

Controls within reach

Laundry Hub™ with EasyReach Controls™

Fit your space and ditch the step stool with Laundry Hub™. You can control both the washer and the dryer from a centralized control panel. Laundry reimagined with a clean, flat-panel design and AI-powered features that simplify your cleaning routine.

* Height comparison: '22 BESPOKE washer/dryer (serial installation) = 1,971mm vs. '24 BESPOKE Laundry Hub = 1,890mm.



Wash more items in a single load

5.3 cu. ft. Large Capacity

Large Capacity lets you wash more items in a single load, meaning fewer loads, less time in the laundry room, and more time doing the things you love.*

* As compared to 27" wide front load washers.



Convenience

Simplify your laundry routine

AI Smart Dial

One Dial for your laundry needs. Samsung's easy to use AI Smart Dial simplifies your laundry machine's control panel. It learns and recommends your favourite cycles*, and allows you to customize your cycle list, making laundry day a breeze.

* AI Smart Dial makes recommendations after 30 days of use based on cycle selections, time selected, and other factors.



Cleaner, safer vents

Vent Sensor

A sensor monitors the condition of your dryer's air duct to make sure it’s running well. Plus, automatic alerts let you know when it’s time to clean your air duct or check for obstructions.



Worry-free drying

Sensor Dry

Automatically optimizes the time and temperature of your drying cycle to help protect your clothes from heat damage, while avoiding excess energy use.



Put an end to stray socks

Drum Light

An internal drum light helps to illuminate the content in your dryer, meaning fewer missed socks or small items.



SmartThings

Connect your life with SmartThings

Wi-Fi Embedded

Use your washer and dryer easily and effectively with the SmartThings App*. The Laundry & Dry Planner optimizes your daily schedule**. And Auto Cycle Link**** selects an optimal drying course after a wash.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. It stores user data, preferences and usage patterns to suggest the most useful options. ** The recommended washed and dried cycle is only based on time and may not be appropriate for the type of fabrics or stain level of the articles being washed. *** A Wi-Fi connection is required at all times, which may increase energy consumption.



SmartThings Clothing Care

Tailored care. Effortless laundry.

Enjoy a more personalized and efficient laundry experience. SmartThings Clothing Care* analyzes your usage patterns** and external factors to make recommendations. It also creates customized clothing care cycles to suit your lifestyle***. And you can buy laundry supplies using Alexa Smart Reorder****.

* Available on Android and iOS devices. A Wi-Fi connection is required. ** Stores user data, preferences and usage patterns to suggest the most useful options. *** The user will be solely responsible for any consequence(s) that may result, including but not limited to any damage or harm caused by incorrect information provided by the user. **** To use Alexa Smart Reorder to buy supplies, you need to link SmartThings to Alexa and activate the Alexa Smart Reorder.



SmartThings Energy

Efficient energy use. Smart savings.

Manage your energy usage SmartThings Energy* provides energy efficiency tips. It also monitors the energy consumption of appliances** in real-time and compares it to the previous month. And it alerts you if your monthly targets might be exceeded.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** SmartThings Energy currently works with around 40 Samsung home appliances that are SmartThings enabled. These include washing machines, clothes dryers, dish washers, air conditioners, air purifiers, vacuum cleaners, ovens, hoods, cooktops, microwave, TVs (from June 2022) and energy meters.



SmartThings Home care

Smart maintenance. Easy upkeep.

Take care of your washer or dryer easily. SmartThings Home Care* notifies you when parts need replacing and helps troubleshoot problems. It also shows you how to update the software of services and devices**. And it provides useful tips on using your appliance, as well as a user manual.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** Only available in the US.



Hygiene

Cleans & refreshes

Self Clean+

Keep the inside of the washer hygienically clean and fresh. Self Clean+ removes dirt and odor-causing bacteria in the drum by soaking, pulsating and spinning. A powerful water jet and a high spin speed also remove dirt from the door gasket*. And it notifies you when it needs cleaning**.

* Based on internal testing. ** Provides a notification after every 40 cycles.



Gently remove stains

Steam Wash

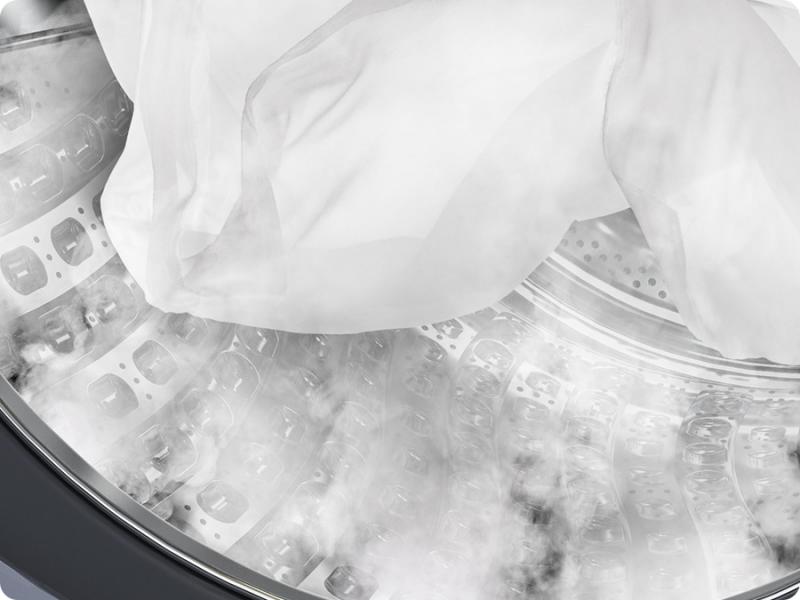

The power of steam helps to gently remove stains. Steam is released from the drum so items in the load are thoroughly saturated, helping to get a deep clean.



Stop the fluff

Lint Filter Alert

The control panel provides a helpful reminder to clean the filter to keep your dryer running smoothly.



ENERGY STAR® Certified

Smart energy savings

[Washer] SmartThings AI Energy mode

Monitor and reduce your energy use. AI Energy mode* lets you easily check the power consumption and estimates your electricity bill. For certain cycles**, it reduces energy use by over 35%*** with the same washing performance****, by reducing the use of a heater and increasing the cycle time.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** Can be applied on AI OptiWash, Super Speed, Small Load, Towels, Heavy Duty, Power Rinse cycle only when the selected washing temperature is 'hot'. *** Based on internal testing on the WF8900B model with IEC 8lb load except for Small Load cycle (IEC 4lb load). Results may vary depending on the actual usage conditions. **** It may reduce the washing performance on an AI OptiWash cycle with light laundry to support fabric care.



Purchase with confidence

20-Year Motor Warranty*

Purchase Samsung Washers with confidence and receive a 20-year warranty on the Digital Inverter Motor.

* 20-year warranty limited to the Digital Inverter Motor of washers assembled in the USA purchased on 7/1/2022 or later. Purchase receipt indicating purchase date required for a claim. Additional restrictions and limitations apply, see warranty for details.



ENERGY STAR® certified

ENERGY STAR® Certified

ENERGY STAR® Certified,* so you use less energy with efficient performance.

* Visit www.energystar.gov for more information on ENERGY STAR® guidelines.



How to measure



How to measure


Washing Capacity
Washing Capacity5.3 cu.ft
Drying Capacity
Drying Capacity (cu.ft)7.6 cu.ft
Design
Body colourBrushed Black
DoorBlack Deco+Glass
Panel DisplayMono LCD + LED
Washer Performance
Cycle time (min)45 min
Energy Efficiency ClassTier 3 (Advanced Tier)
Energy Star CertificationYes
Energy Star Most EfficientNo
Energy Consumption (annual)94 kWh/year
IMEF3.1
IWF2.9
Dryer Performance
Cycle time (min)75 min
Energy Star CertificationYes
DOE Energy Factor3.93 lb/kWh
Washer Feature
Auto DispenseNo
AI OptiWashNo
Super SpeedNo
SteamYes
Smart ControlYes
Child LockYes
Self Clean+Yes
Interior Drum LightYes
Internal HeaterYes
MotorDD
Spin Speed1200 rpm
Delay EndYes
VRTVRT Plus
Progress IndicatorYes
Number of Soil Level5 EA
Number of Spin Level5 EA
Number of Temp. Level5 EA
Number of Cycle23 EA
Number of Option14 EA
Cycle ListNormal, Wool, Heavy Duty, Bedding, Perm Press, Delicates, Activewear, Wool, Towels, Eco Cold, Rinse+Spin, Self Clean+, Small Load, Colors, Spin Only, Denim, Steam Sanitize, Steam Allergen, Steam Normal, Power Steam, Steam Whites, Steam Bulky, Power Rinse
Option ListPre Soak, Extra Rinse, My Cycles, Delay End, Smart Control, Drum Light, Child Lock, AI Pattern, Calibration, Self Diagnosis, Volume, Language, Wi-Fi, Factory Reset
Dryer Feature
AI Optimal DryNo
Super SpeedNo
SteamNo
Vent SensorYes
Smart ControlYes
Child LockYes
Interior Drum LightYes
Reversible DoorNo
Drying RackNo
Dual HeaterYes
Filter Check IndicatorYes
Mixed Load Bell / Damp AlertYes
My CyclesYes
Vent Exhaust (Electric/Gas)3 ways
Wrinkle PreventYes
Progress IndicatorYes
Number of Drying Level5 EA
Number of Temp. Level5 EA
Number of Time Level9 EA
Number of Cycle16 EA
Number of Option13 EA
Cycle Listeco Normal, Normal, Heavy Duty, Towels, Perm Press, Activewear, Bedding, Delicates, Wool, Saniztize, Shirts, Denim, Time Dry, Air Fluff, Quick Dry, Rack Dry
Option ListDamp Alert, Wrinkle Prevent, My Cycles, Smart Contol, Eco Dry, Drum Light, Child Lock, Volume, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset
Physical specifications & size
Net Dimension (WxHxD)27 x 74.4 x 31.3 mm
Net Weight320 lbs
Gross Dimension (WxHxD)29.4 x 81.9 x 34.1 inch
Gross Weight331 lbs
Washer Voltage/Frequency120V / 60Hz
Dryer Voltage/Frequency120V / 240V / 60Hz
Washer Drum MaterialStainless Steel
Dryer Drum MaterialPowder Coat (Gray)
Smart
WiFi EmbeddedYes
