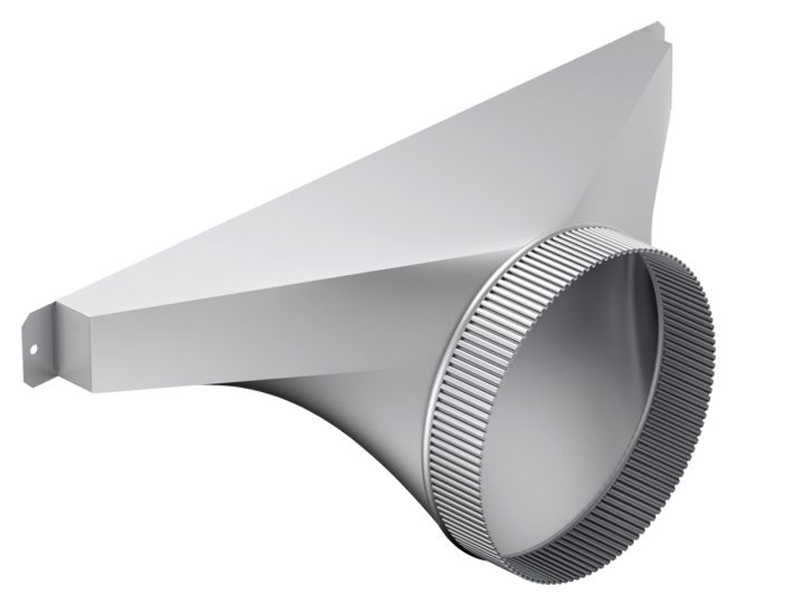

Bosch 8" Side/Rear Transition for Downdraft - HDDSTRAN8
$179.00 CAD
$205.00
Save $26.00
Literature
8" Round Transition Enable Ducting To Be At Sides Or Rear Of Downdraft For Flexible Configurations To Maximize Your Kitchen Design
- Flexible Transition Design Allows For Left, Right Or Rear Venting
- For DHG602DUC Flexible Downdraft Blower Used As Inline Installation
- Some Blower Positions May Need Deeper Cabinets. See Installation Guide
Design
- Customize The Direction Of Duct Discharge To Be Left, Right, Or Rear

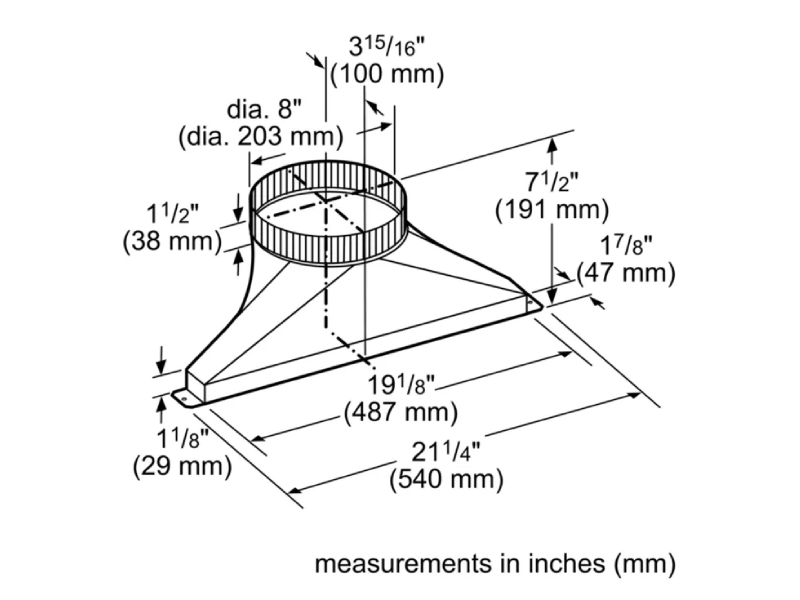

- Rectangular 1-7/8" x 19" Transition To 8" Round
- Ability To Use With Ducting Or Elbows With 8" Round Duct Connection
- Some Blower Positions May Need Deeper Cabinets. See Installation Guide
Performance
- For DHG602DUC Flexible Downdraft Blower Used As Inline Installation
- See Installation Guide For Details
Technical data | |
---|---|
Brand | Bosch |
Name of product image | MCSA02477409_i3922_1851069_CVTSIDE8_def.jpg |
Construction type | Built-in |
Height of the packed product (mm) | 318 mm |
Width of the packed product (mm) | 324 mm |
Depth of the packed product (mm) | 635 mm |
SKU | HDDSTRAN8 |
Product name / series name | product line supplement cooker hood |
EAN code | 4,242,002,909,363 |
Gross weight (kg) | 1.36 kg |
Height of the product (mm) | 32 mm |
Product group | Hood |
UPC code | 825225920434 |
EAN Barcode | ' 2E20AC-jajdgd |
Standard number of units per pallet | 20 |
Internal article number | 000000000000777721 |
Net weight (kg) | 1.214 kg |
Product group for which the accessory is available | Hood |
Product packaging dimensions (HxWxD) (mm) | 317 x 323 x 635 mm |
Other data | |
EAN Barcode | ' 2E20AC-jajdgd |
Standard number of units per pallet | 20 |
Country of origin | US |
Product packaging dimensions (HxWxD) (mm) | 317 x 323 x 635 mm |
