30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PWH
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PSS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PPS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PWH
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PBS
Key Features
- Air Fry Mode
- Dishwasher-Safe Air Fry Basket
- Even-Heat™ True Convection
- Integrated Meat Thermometer
- EasyConvect™ Conversion System
Product Overview

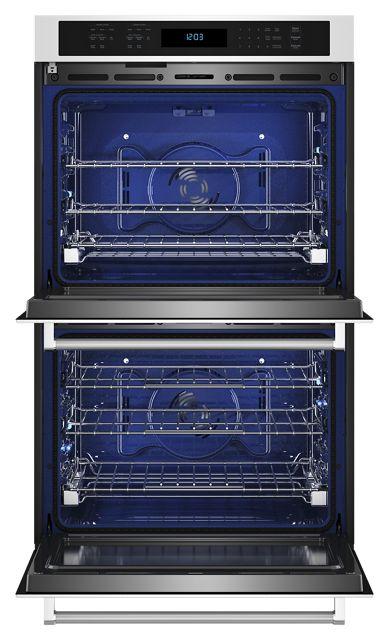

KitchenAid® 30" Double Wall Oven with Air Fry Mode
Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.*When compared to deep frying.
Air Fry Mode
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Additional Features
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
EVEN-HEAT True Convection for consistent baking and roasting
Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
EasyConvect™ Conversion System
Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
SatinGlide™ Roll-Out Extension Rack
Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
FIT System Limited Guarantee
Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
| Oven Cavity Details | |
|---|---|
| Number of Lower Rack Guides | 6, 6, 6 |
| Number of Upper Oven Racks | 3, 3, 3 |
| Number of Upper Rack Guides | 6, 6, 6 |
| Oven Convection Cooking System | Convection Both, Convection Both, Convection Both |
| Cleaning Type | Self-Cleaning, Self-Cleaning, Self-Cleaning |
| Self-Cleaning Oven Racks | No, No, No |
| Dimensions | |
| Cutout Depth | 60.96 cm, 24 in |
| Oven Cavity Details | |
| Upper Oven Number of Oven Lights | 2, 2, 2 |
| Dimensions | |
| Cutout Height | 127.64 cm, 50-1/4 in |
| Depth | 68.90 cm, 27-1/8 in |
| Cutout Width | 72.39 cm, 28-1/2 in |
| Depth Closed Excluding Handles | 62.23 cm, 24-1/2 in |
| Depth Closed Including Handles | 68.90 cm, 27-1/8 in |
| Gross Weight | 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg |
| Depth With Door Open 90 Degree | 118.74 cm, 46-3/4 in |
| Height | 129.06 cm, 50-13/16 in |
| Lower Oven Interior Depth | 48.26 cm, 19 in |
| Lower Oven Interior Width | 63.50 cm, 25 in |
| Lower Oven Interior Height | 45.72 cm, 18 in |
| Net Weight | 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg |
| Upper Oven Interior Depth | 48.26 cm, 19 in |
| Upper Oven Interior Height | 45.72 cm, 18 in |
| Upper Oven Interior Width | 63.50 cm, 25 in |
| Width | 75.56 cm, 29-3/4 in |
| Smart Compatibility | |
| Connectivity | No, No, No |
| Details | |
| Flush Installation Approved | Yes, Yes, Yes |
| Smart Compatibility | |
| Works With | No, No, No |
| Details | |
| Oven Type | Double, Double, Double |
| Oven Cavity Details | |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 3, 3, 3 |
| Number of Bake Elements | 2, 2, 2 |
| Details | |
| Fuel Type | Electric, Electric, Electric |
| Oven Cavity Details | |
| Lower Oven Number of Oven Lights | 2, 2, 2 |
| Light Type | Halogen, Halogen, Halogen |
| Interior Color | Blue, Blue, Blue |
| Interior Coating | Porcelain, Porcelain, Porcelain |
| Installable Under Cooktop | No, No, No |
| Hidden Bake Element | Yes, Yes, Yes |
| Door Broil Position | Closed, Closed, Closed |
| Door Lock | Yes |
| Door Removable | Yes, Yes, Yes |
| Convection Functions | Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion |
| Convection Element Type | True Convection, True Convection, True Convection |
| Broiler Location | Top of Oven, Top of Oven, Top of Oven |
| Convection Element Power | 3200 Both W, 3200 Both W, 3200 Both W, 3200 Both W |
| Broiler Element Power | 4000W Both, 4000W Both, 4000W Both |
| Bake Element Power | 2800W Both, 2800W Both, 2800W Both |
| Exterior Details | |
| Oven Window Size | Extra Large, Extra Large, Extra Large |
| Handle Material | Metal, Metal, Metal |
| Handle Color | Stainless Steel, Stainless Steel, Stainless Steel |
| Door Type | Metal & Glass, Metal & Glass, Metal & Glass |
| Door Lock | Yes, Yes, Yes |
| Certifications | |
| UL | Yes, Yes, Yes |
| CUL | Yes, Yes, Yes |
| Star K Certified | Star K Certified, Star K Certified, Star K Certified |
| ADA Compliant | No, No, No |
| Details | |
| Power On Indicator Light | Yes |
| CONTROLS | |

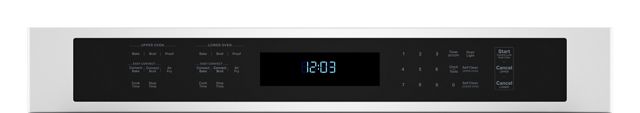

| Control Type | Electronic Touch, Electronic Touch, Electronic Touch |
| Display Color | White, White, White |
| Display | Digital |
| Language Conversion | English/French/Spanish, English/French/Spanish, English/French/Spanish |
| Electrical | |
| Power Cord Included | No |
