23" Bosch 6 Serie Electric Cooktop in Black Surface Mount with Frame - NET5469SC
Your temperature, your way.
Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect®, an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want – quickly and easily.
Stores your control settings.
If you turn off the cooktop it saves the last selected setting for a short time. If the cooktop is switched of within a short time again the former settings are still available.
Control at your fingertip.

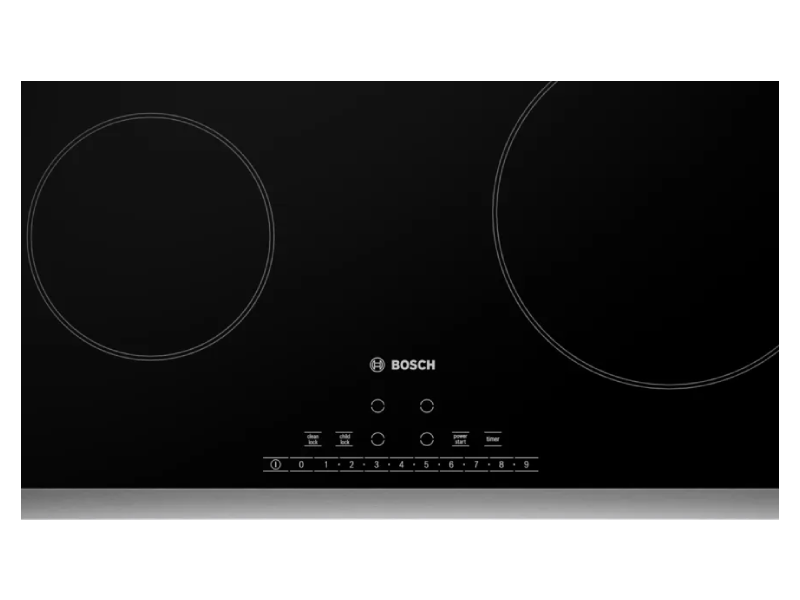

PreciseSelect® Premium controls on our induction and electric cooktops offer premium usability during cooking. The choice of desired cooking zones, power levels and individual functions are direct and intuitively easy together with a wider LED illuminated display. The light line on power level bar and cooking zones illuminate in a more intense way when one of them has been selected.
- PreciseSelect : direct cooking level selection.

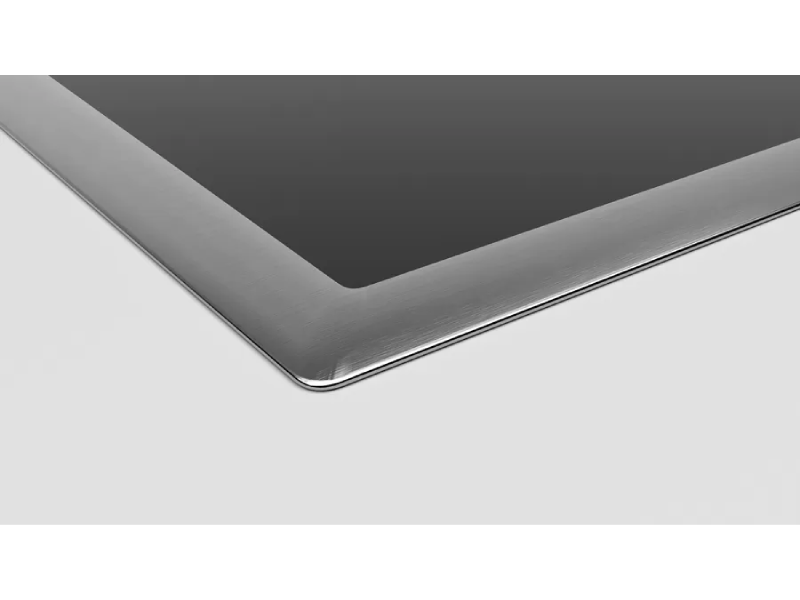

- Steel frame: the flat stainless steel frame around the hob is perfect for integrating into existing countertop cutouts.
- ReStart : if something boils over, the cooktop automatically turns itself off and saves the last selected setting.
- Panel Lock feature locks the control panel to prevent accidental changes in settings.
- PreciseSelect Premium offers 17 Power Levels for Each Cooking Zone
Design
- Black-Glass Seamless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- PreciseSelect - Direct Cooking Level Selection - 17 Settings for Precise Control
- 2,200W Left Rear Element for Faster Boil Times
Safety
- 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
- ChildLock - Prevents the Cooktop from Being Accidentially Switched on. Locks Temperature Settings if in Use.
General | |
---|---|
Cooktop type | Radiant cooktop |
Self-sufficient cooker control | Self-sufficient electro hobs |
Type of appliance width | 60 cm |
Total number of cooktop burners | 4 |
Dimensions of the heating elements | 1 x 18,0 cm Ø, 1 x 21,0 cm Ø, 2 x 14,0 cm Ø |
Power of the heating elements | 1 x 2.0 KW, 1 x 2.2 KW, 2 x 1.2 KW |
Basic surface material | Ceramic |
Frame type | Standard design |
Variant color | Black |
Energy consumption of hob | 191.0 Wh/kg |
Connectivity | |
Home Connect | No |
Cooktop-based hood control | No |
Size and Weight | |
Dimensions | 110 x 583 x 513 mm |
Overall appliance dimensions (HxWxD) (in) | 1/8"+ 4 1/3" x 23" x 20 1/5" |
Net weight | 9.1 kg |
Net weight | 20.000 lbs |
Minimum distance from counter front (in) | 2 1/4 |
Minimum distance from rear wall (in) | 2 |
Cooking zone 1 | |
Dimension of 1st heating element (in) | 6" |
Location of 1st heating element | front left |
Power of heating element (W) | 1.2 kW |
Type of heating element | Radiant heating |
Energy consumption of heating element | 190.2 Wh/kg |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element | 180 mm |
Dimension of 3rd heating element (in) | 7" |
Location of 3rd heating element | back left |
Power of 3rd heating element (W) | 2 kW |
Type of 3rd heating element | Radiant heating |
Energy consumption of 3rd heating element | 188.8 Wh/kg |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element | 140 mm |
Dimension of 5th heating element (in) | 6" |
Location of 5th heating element | back right |
Power of 5th heating element (W) | 1.2 kW |
Energy consumption of 5th heating element | 190.2 Wh/kg |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element | 210 mm |
Dimension of 7th heating element (in) | 8" |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 2.2 kW |
Type of 7th heating element | Radiant heating |
Energy consumption of 7th heating element | 194.9 Wh/kg |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Construction type | |
Color of frame | Stainless steel |
Color of surface | Black, Stainless steel |
Construction type | Built-in |
Design - line | Frame |
Number of electric elements | 0 |
Number of electric cooking zones | 4 |
Type of frame | Frame |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 4 |
Number of radiant elements | 4 |
Number of electric warming zones | 0 |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Power cord length | 96 cm |
Watts | 6,600 W |
